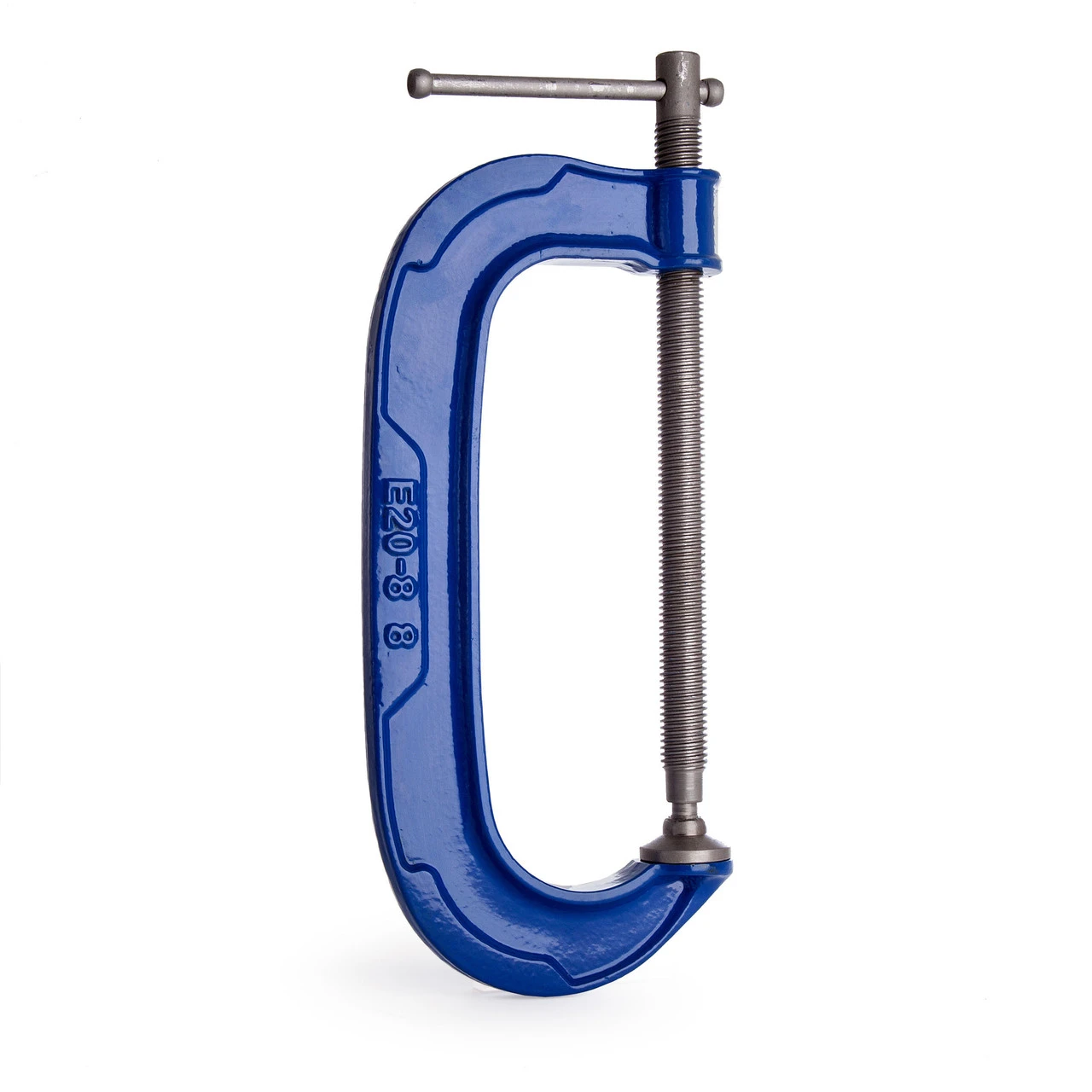

Eclipse E20-8 Heavy Duty G-Clamp 8in / 200mm

Eclipse E20-8 Heavy Duty G-Clamp 8 Inch / 200mm

The Eclipse E20-8 has a clamping force of 773kg (1700lbs). Guaranteed unbreakable, malleable iron frame with a fast action twin start rolled acme thread. The steel swivel shoe applies an even pressure, even on angled surfaces, whilst the tommy bar will bend before the frame can become over-stressed.

Features:

• Acme thread
• Steel swivel shoe
• Guaranteed unbreakable
• Malleable iron frame

Specification:

• Part No: E20-8
• Clamping Capacity: 8″ (200mm)
• Frame Proof Loads: 1700lbs / 773kg
• Weight: 2.5kg

SKU: ECL-E20-8
