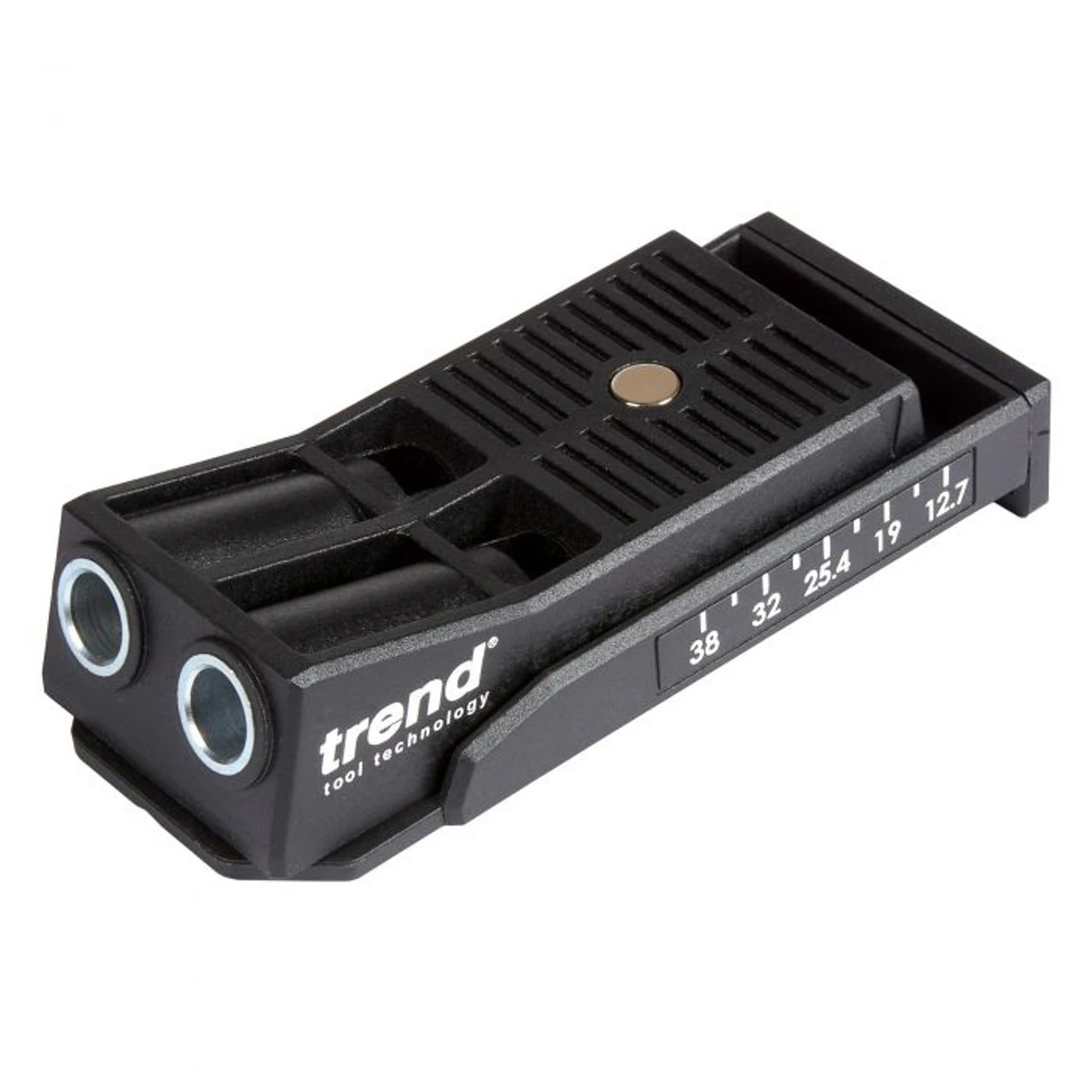

Trend PH/JIG/C Twin Pocket Hole Jig

With this Trend pocket hole jig, twin pockets can be used for drilling two holes for increased strength or single holes for narrower components

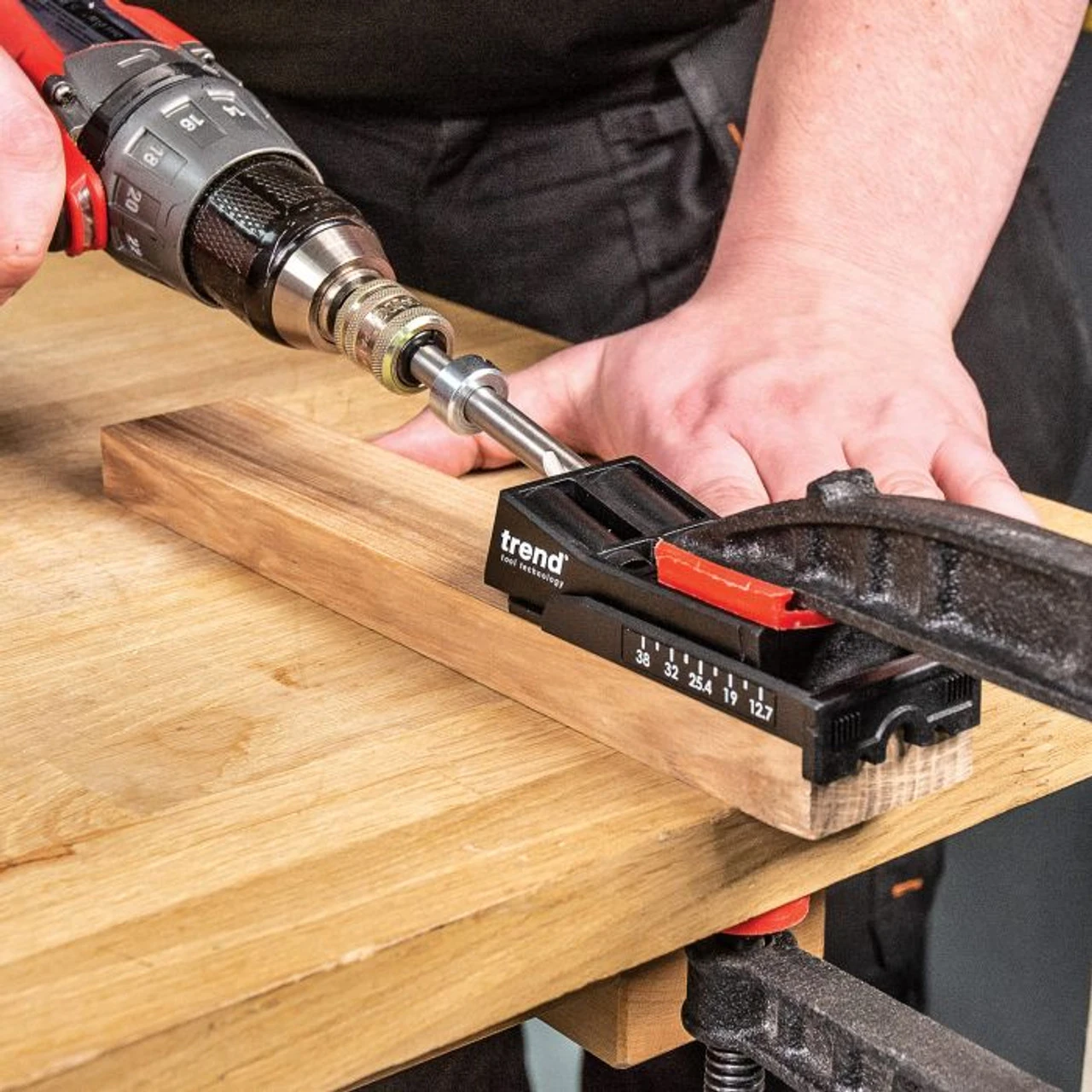

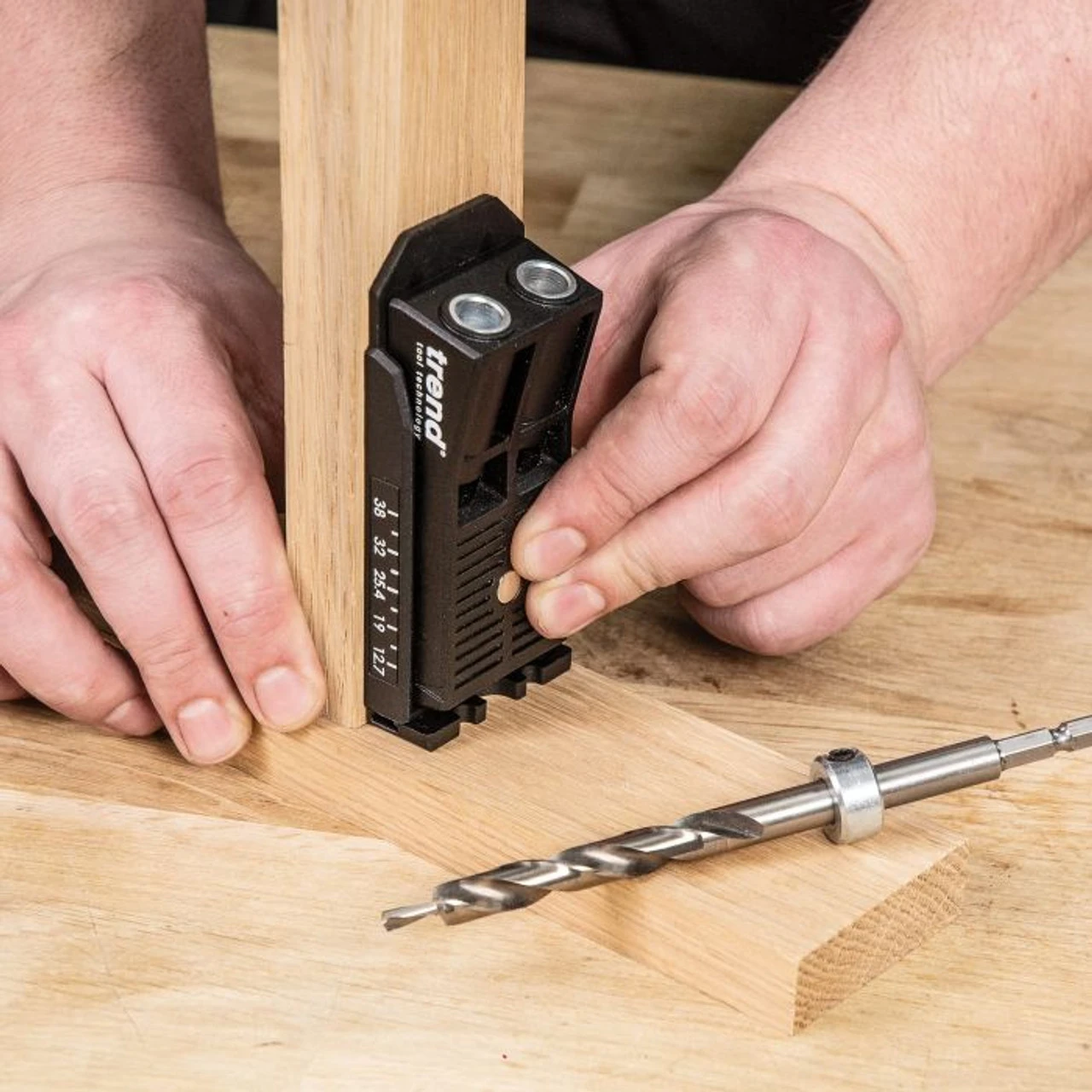

The Trend PH/JIG/C Twin Pocket Hole Jig is ideal for strengthening and repair work in materials from 12.7mm up to 38mm thick. It is adaptable for multiple jointing styles and applications. It features a Quick Set Drill and Timber Setting sliding Set Up Gauge that sets the correct drilling depth and jig position for different material thicknesses. Its Magnetic Clamp plate aids the location of the jig when clamping.

Features:

• Full Length Hardened Drill Guides for precision pockets and long life span
• Wide Material Dimensions Range covers stock from 12.7mm to 38mm
• Unlimited Material Width can be easily relocated across any material width for infinite pocket hole positioning
• Multi-Function ideal for making repairs to existing work, constructing smaller projects and heavy-duty builds
• Adaptable for multiple jointing styles and applications
• Compact and Portable fits easily into a pocket or tool pouch and is always ready to hand
• Fast Setup easy adjustments for different component sizes
• Quick Set Drill and Timber Setting sliding Set Up Gauge sets the correct drilling depth and jig position for different material thicknesses
• Trend Snappy Chuck Compatible supplied with high-quality HSS stepped drill and No2 square Drive bit with quick change hex shanks
• Ready To Go supplied complete with HSS Stepped drill, 150mm Square Drive driver bit and selection of screws

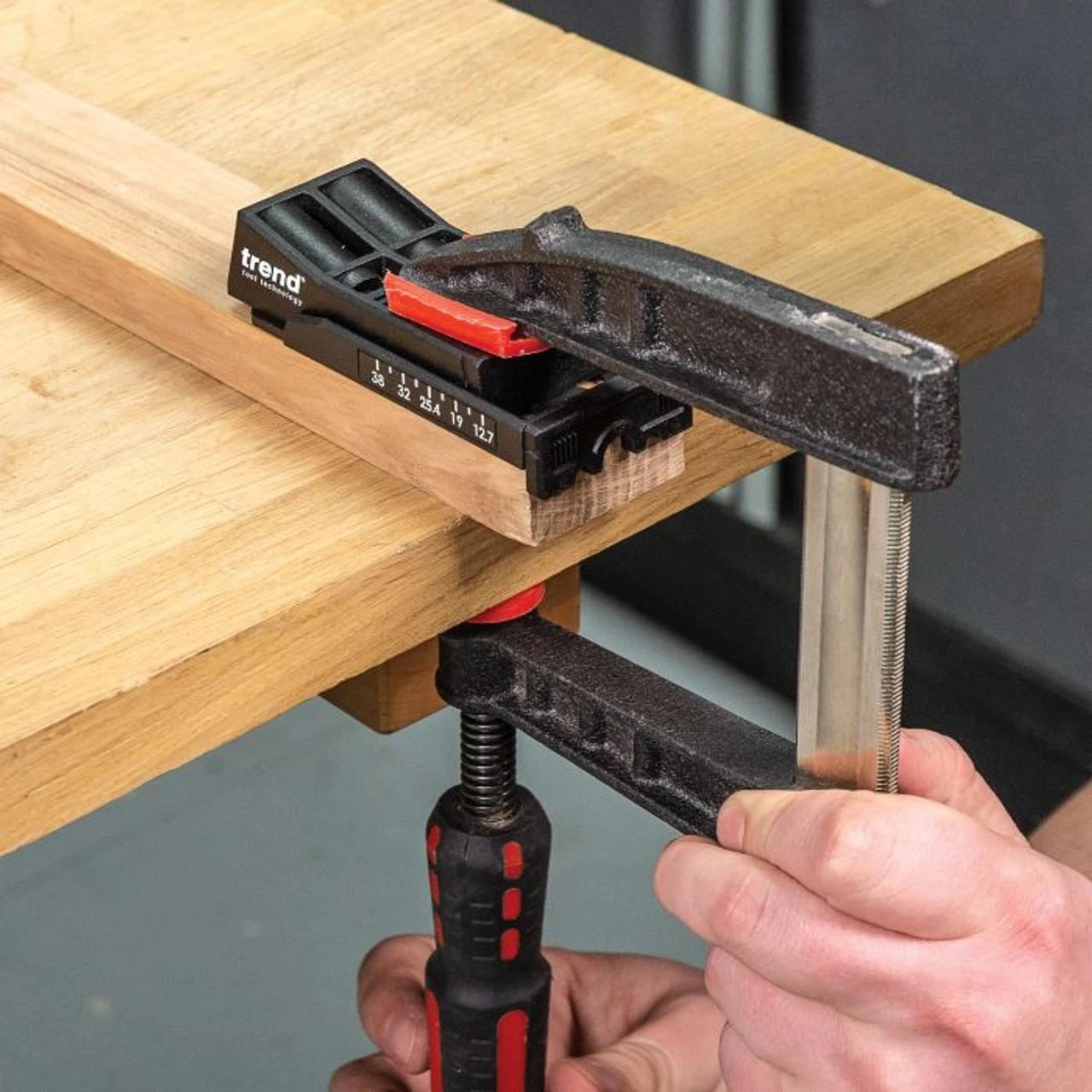

• The magnetic clamp plate aids the location of the jig when clamping
• Multi-material compatibility Ideal for jointing in hard and softwoods and sheet materials

Specification:

• Material thickness min: 12.7mm
• Material thickness max: 38mm
• Hole centres: 21.5mm
• Drilling angle: 15 degrees
• Screw sizes: Coarse No.7 x 25 mm, No.7/8 x 30 mm, No.8 x 38 mm, No.8 x 50 mm, No.8 x 63 mm

SKU: TRE-PH/JIG/C
